SPECIFICATIONS

Keltron produces Radial Lead Out (3F to 25F) and High CV (50F to 500F) supercapacitors with 2.5 V & 2.7 V ratings in Snap-in, Lug, and Screw terminal configurations which work in varied temperatures from -40°C to 65°C.

Supercapacitor Products
Picture	Rated Voltage (VDC)	Rated Capacitance (F)	Typical DC ESR (m Ω)	Terminal	Model Number	Datasheet

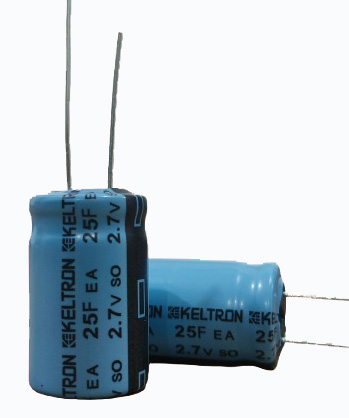

	2.7	3F	220	Radial Lead	EA3R0CQCGRBG	View PDF
	2.7	3.3F	210	Radial Lead	EA3R3CQCGRBG	View PDF
	2.7	5F	180	Radial Lead	EA050CQCGRBG	View PDF
	2.7	10F	75	Radial Lead	EA100CQDKRBG	View PDF
	2.7	15F	40	Radial Lead	EA150CQDKRBG	View PDF
	2.7	18F	40	Radial Lead	EA180CQEKRBG	View PDF
	2.7	20F	36	Radial Lead	EA200CQEKRBG	View PDF
	2.7	25F	26	Radial Lead	EA250CQEKRBG	View PDF
	2.7	50F
	2.7	60F	15	Large can	GA600CQBCLBG	View PDF
	2.7	70F	15	Large can	GA700CQBCLBG	View PDF
	2.7	100F
	2.5	200F	18	Large can	GA201BQDGLBG	View PDF
	2.7	325F
	2.7	350F
	2.7	360F
	2.7	450F	14	Large can	GA451CQDKLBG	View PDF

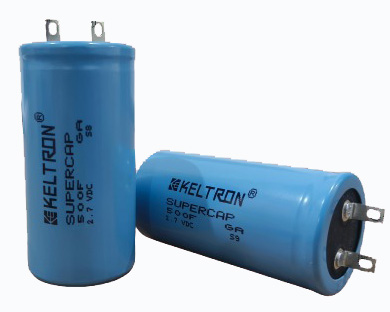

	2.7	500F	14	Large can	GA501CQDKLBG	View PDF
